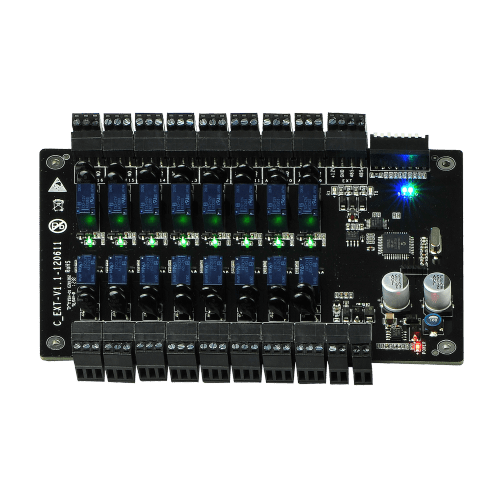

EX16

The EX16 floor extension boards provide customers with the most secured, scalable, versatile and affordable access control solutions available today. Floor access can be restricted based on various user credentials, including fingerprint, proximity card and/or password. Pre-defined time schedules can also be used to control floor access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode). The EX16 Elevator Floor Extension Board restricts access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combining together, a total fifty eight (58) floors can be controlled with a single EC10 bundle.

Get More Floor Access Levels

Combine Up to 3 with the eC-10

Supports Daisy chain to control more floors

Simple Management & Scalability

Features

Learn more about this device.

floor button control relay

16

EC10 communication

RS485

Power Supply

2V DC 1A

Supported Software

Works with EC10 on ZKBioSecurity

dimensions

160mm x 106 mm

RS485 Adress

Set By DIP Switch

Downloads

brochure

EX16 & EC10 datasheet
